Custom SMT bottom entry terminals

The SMT bottom entry terminal enables connection to lead pin type parts and components.

Custom SMT bottom entry terminal overview

These components are used when fitting lead type parts and components and substrate modules to a through hole board or single sided board from the rear.
Very useful in the retrofitting of lead type and other parts and components.
If part of reel winding specifications, a mounter can be used to mount the components.

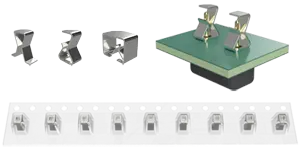

Custom SMT bottom entry terminal photo

Custom SMT bottom entry terminal special features

  • Enables mounting of parts and components and modules from rear of board.
  • Automatic mounting can be done using a mounter (if this is part of reel winding specifications).
  • Greater freedom of component array is enabled.
  • Mounted parts and components and modules can be mated and unmated.
  • Not only on through-hole boards, components can also be mounted to single sided boards.
  • No need for secondary work, such as peeling off adsorption seals after reflow.
Custom SMT bottom entry terminal special features photo

SMT bottom entry terminal mounting process

  • SMT bottom entry terminal mounting process 1①Cream solder application
  • SMT bottom entry terminal mounting process 2②SMT bottom entry terminal mounting
    ③Reflow
  • SMT bottom entry terminal mounting process 3Removal of unwanted solder
    Removal of adsorption cap
  • SMT bottom entry terminal mounting process 4④Mounting parts and components, etc.

SMT bottom entry terminal product examples

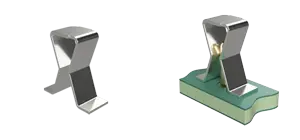

  • SMT bottom entry terminal product examples photo 1

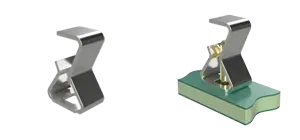

  • SMT bottom entry terminal product examples photo 2
  • SMT bottom entry terminal product examples photo 3

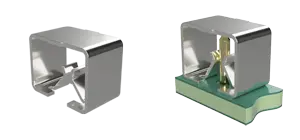

  • SMT bottom entry terminal product examples photo 4

SMT bottom entry terminal reference specifications

  • Material : phosphor bronze
  • Surface treatment : Ni base, Su plating
  • Sample dimensionsSample dimensions image
