Chain Terminal Inserter: PIA Series

Terminals are inserted at high speed with servo motor drive head.

Chain Terminal Inserter: PIA Series

This is an inserter for preform chain pin terminals.
This machine uses a servo motor to drive the insertion head to insert terminals at high speeds.
In addition, acceleration/deceleration of the insertion speed is possible.
There are PIA-40-2020 which inserts straight pin terminal and PIA-50-2020 which inserts right angle pin terminal.


Stable terminal supply with prefeed mechanism Stable terminal supply with prefeed mechanism photo

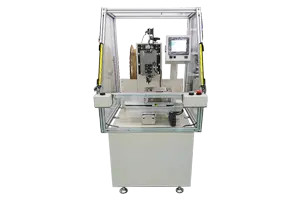

PIA-40-2020 photo
PIA-40-2020
with area sensor (option)

Main specifications of straight pin terminal inserter PIA-40-2020

PIA-40-2020 Specification diagram
  • apability : 0.60sec./ pin (2.54mm pitch, straight pin)
  • Drive : XY table and insert head driver are both by AC servo motor.
  • Table stroke : 200mm×200mm (optional)
  • Data input : PC
  • Power supply : AC200V
  • Dimensions : 650W × 1320D × 1450H (unit mm) Includes terminal reel

Main specifications of right angle pin terminal inserter PIA-50-2020

PIA-50-2020 Specification diagram
  • apability : 0.80sec./ pin (2.54mm pitch, straight pin)
  • Drive : XY table and insert head driver are both by AC servo motor.
  • Table stroke : 200mm×200mm (optional)
  • Data input : PC
  • Power supply : AC200V
  • Dimensions : 650W × 1320D × 1450H (unit mm) Includes terminal reel

Pre-form Chain Pin Terminal Insertion specifications

Straight pin terminal insertion specifications

Straight pin terminal image
  • Pin length Max : L max=25mm
  • Workpiece upper Min : A min=2.0mm    A > L/3
  • Workpiece lower : B ≥ 0
    Note: Minimum dimensions affect workpiece thickness
  • Pin thickness : Round φd=0.45mm~1.0mm Square ☐S=0.4mm~1.0mm
Minimum pitch unit mm
φd, ☐S Pitch Min
0.5 or less 1.27
0.5 over 0.64 or less 2.0
0.64 over 0.8 or less 2.5
0.8 over 1.0 or less 3.0

Right angle pin terminal insertion specifications

Right angle pin terminal image
Round Square
Vertical section minimum Lh ≥ φd × 4 Lh ≥ ☐S × 4
Workpiece upper minimum C ≥ φd × 3 C ≥ ☐S × 3
Pin thickness φd=0.4~0.8 ☐S=0.4~0.8

Minimum pitch unit mm
φd, ☐S Pitch Min
0.4 or less 1.27
0.4 over 0.5 or less 1.5
0.5 over 0.6 or less 2.0
0.6 over 0.7 or less 2.3
0.7over 0.8 or less 2.6

Video of straight pin terminal inserter PIA-40-2020
