Through Hole Contact Pin Headers (Pin terminal type)

Through hole contact pin headers that can be connected without soldering

Through Hole Contact Pin Headers overview

These are pin type through hole contact headers that can connect solderless boards and other parts and components to through hole boards.

Through Hole Contact Pin Headers image

Through Hole Contact Pin Headers special features

  • Connect to through hole boards without the use of solder.
  • No solder means that components and boards can be easily replaced.
  • Contact pin headers that enable the replacement of both through hole boards are available.
  • Contact pin headers that enable soldering on one side are available.
Through Hole Contact Pin Headers image

Through Hole Contact Pin Headers product examples and applications

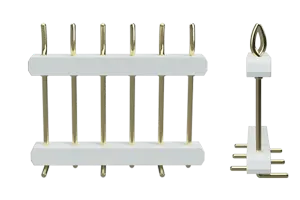

  • Single side surface mount type (double base)Single side surface mount type (double base) photoSingle side surface mount type (double base) image

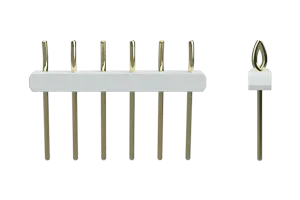

  • Single side solder type (double base)Single side solder type (double base) photoSingle side solder type (double base) image

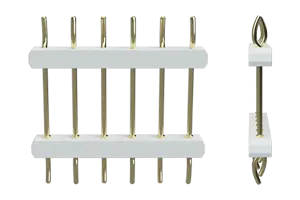

  • Double side contact type (double base)Double side contact type (double base) photoDouble side contact type (double base) image

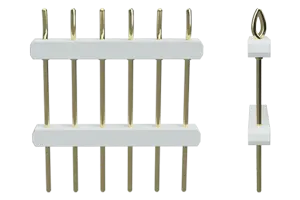

  • Single side solder typeSingle side solder type photoSingle side solder type image

Through Hole Contact Pin Headers specifications

Please check applicable conditions, etc., before using.
Terminal Size ψ0.45㎜
Material phosphor bronze (C5191W)
Surface treatment Gold
Base Material CEM-3 etc
No. of pins 4P〜
Pitch 1.27㎜, 2.54㎜
Applicable through hole Board thickness 1.2㎜〜1.6㎜
Metal plating 0.05㎛ or greater
Finish diameter ψ0.8㎜ ±0.05
No. of insertions Max. 50
Insert strength (4P, ψ0.8metal through hole) Insert Max. 3N
Withdraw 0.4N or greater
Rated current 1A
Insulation resistance 500㏁ or greater
Withstand voltage 1.27pitch 500V AC,DC /1 minute
2.54pitch 1000V AC,DC /1 minute
Contact resistance 20mΩ or lower
