Chain Terminal Inserter: PIS Series

Desktop-type insertion machine for small-volume production in pursuit of economic efficiency

Chain Terminal Inserter: PIS Series

This is a tabletop type insertion machine for chain pin terminals for small volume production, which pursues economic efficiency.
This is a tabletop type machine that drives the insertion head with air.
There are two types, one is for inserting the straight pin terminal and the other is for inserting the right angle pin terminal.
For workpiece positioning, there are fixed types, or types using a single-axis table of X or Y, and types using a two-axis table of XY.

Main specifications of straight pin terminal inserter PIS Series

2-axis straight pin terminal inserter Model PIS-12-2015

PIS-12-2015 photo
The stand and cover : option
  • Capability : 1.0 sec./ pin (2.54mm pitch)
  • Insert head : Pneumatic pressure
  • XY table : AC servo motor
  • Table stroke : X=200mm Y=150mm
  • Data input : Control touch panel, PC
  • Interface : SD card (PC)
  • Power supply : AC100V
  • Pneumatic pressure : 0.5Mpa
  • Separate control panel and operation board Tabletop type
  • Dimensions (unit mm)
    • Body : 480W × 810D × 1020H Includes terminal reel
    • Control panel : 200W × 400D × 400H
    • Operation board : 270W × 235D × 80H

1-axis straight pin terminal inserter Model PIS-12-1000, PIS-12-0010

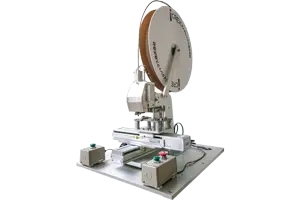

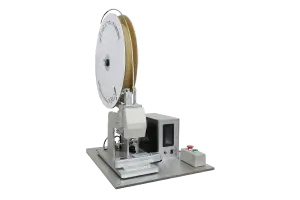

PIS-12-1000 photo
Flat plate : option
  • Capability : 1.0 sec./ pin (2.54mm pitch)
  • Insert head : Pneumatic pressure
  • XY table : AC servo motor
  • Table stroke : X=100mm or Y=100mm
  • Data input : Control touch panel, PC
  • Interface : USB (PC)
  • Power supply : AC100V
  • Pneumatic pressure : 0.5Mpa
  • Separate control panel and operation board Tabletop type
  • Dimensions (unit mm)
    • Body PIS-12-1000 : 335W × 750D × 950H Includes terminal reel
    • Body PIS-12-0010 : 320W × 785D × 950H Includes terminal reel
    • Control panel and Operation board : 150W × 330D × 260H

Video of straight pin terminal inserter PIS-12-2015

Straight pin terminal insertion specifications

Straight pin terminal insertion specifications image
  • Pin length Max : L max=25mm
  • Workpiece upper Min : A min=2.0mm    A > L/3
  • Workpiece lower : B ≥ 0
    Note: Minimum dimensions affect workpiece thickness
  • Pin thickness : Round φd=0.45mm~1.0mm Square ☐S=0.4mm~1.0mm
Minimum pitch unit mm
φd, ☐S Pitch Min
0.5 or less 1.27
0.5 over 0.64 or less 2.0
0.64 over 0.8 or less 2.5
0.8 over 1.0 or less 3.0

Main specifications of right angle pin terminal inserter PIS Series

2-axis right angle pin terminal inserter Model PIS-62-2015

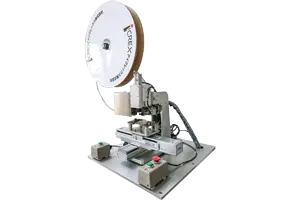

PIS-62-2015 photo
The stand and cover : option
  • Capability : 1.0 sec./ pin (2.54mm pitch)
  • Insert head : Pneumatic pressure
  • XY table : AC servo motor
  • Table stroke : X=200mm Y=150mm
  • Data input : Control touch panel, PC
  • Interface : SD card (PC)
  • Power supply : AC100V
  • Pneumatic pressure : 0.5Mpa
  • Separate control panel and operation board Tabletop type
  • Dimensions (unit mm)
    • Body : 895W × 545D × 1090H Includes terminal reel
    • Control panel : 200W × 400D × 400H
    • Operation board : 270W × 235D × 80H

Video of right angle pin terminal inserter PIS-62-2015

Right angle pin terminal insertion specifications

Right angle pin terminal insertion specifications image
Round Square
Vertical section minimum Lh ≥ φd × 4 Lh ≥ ☐S × 4
Workpiece upper minimum C ≥ φd × 3 C ≥ ☐S × 3
Pin thickness φd=0.4~0.8 ☐S=0.4~0.8
Minimum pitch unit mm
φd, ☐S Pitch Min
0.4 or less 1.27
0.4 over 0.5 or less 1.5
0.5 over 0.6 or less 2.0
0.6 over 0.7 or less 2.3
0.7over 0.8 or less 2.6
