Female Headers

Female header and index page

Female Headers description

As a basic specification,

  • 1㎜ pitch in case of mating square pin size □0.3㎜. (There is also 0.8㎜ of part.)
  • 1.27㎜ pitch in case of mating square pin size □0.4㎜ and □0.46㎜.
  • 2㎜ pitch in case of mating square pin size □0.5㎜.
  • 2.54㎜ pitch in case of mating square pin size □0.64㎜.

ou can specify the number of terminals from the base specification.

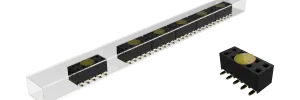

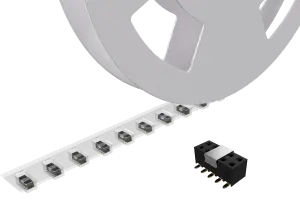

At the SMT mounting stage, we offer taping (capped), stick packaging, and other standard forms, as well as options.
Note) Some packaging methods may not be applicable, depending on the shapes of the pin header and female header, so consult us for details.

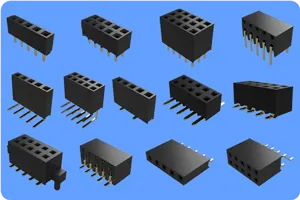

Female Headers photo

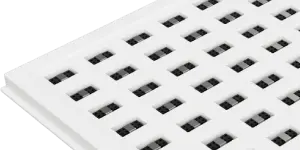

Packaging options

Packaging options image

Female Headers special features

  • We offer an abundant range of standard specifications.
  • You can specify the number of terminals.

Female Headers index
