Conversion Adapter

The conversion adapter can also be used with discontinued parts and components.

Conversion Adapter overview

The conversion adapter allows pitch conversion, array conversion, SMD conversion and pin insert conversion of electronic parts and components using terminals and printed circuit board.
The conversion adapter can be used when parts and components have been discontinued and the replacement parts have different arrays or mounting methods.
In addition to providing conversion adapters, we can also mount replacement components.

Conversion Adapter photo

Conversion Adapter special features

  • We offer conversion adapters with custom specifications to meet our customers' needs.
  • It is precisely because we are a terminal manufacturer that the conversion adapter can be used with customized terminals.
  • We can also support terminal soldering and parts and components mounting.
Conversion Adapter image

Examples of use of Conversion Adapters

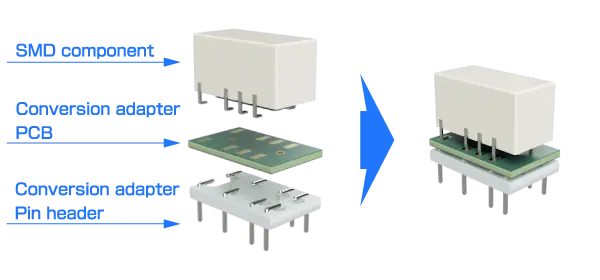

CASE 1 : Convert component wiring to match that of existing patterns, and convert SMD components to lead pin type.

  • SMD replacement relay imageSMD replacement relay
  • plus
  • Conversion adapter Printed wiring board imageConversion adapter
    Printed wiring board
  • plus
  • Conversion adapter Pin headerConversion adapter
    Pin header
  • equal
  • Conversion image

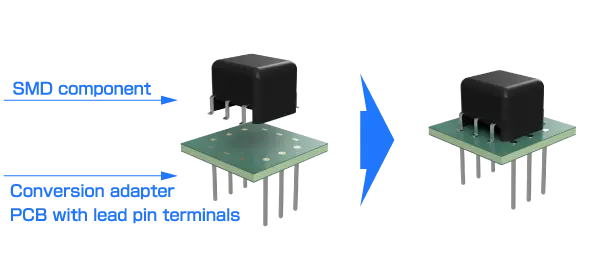

CASE 2 : Convert SMD components to lead pin type.

  • SMD component imageSMD component
  • plus
  • Conversion adapter Printed wiring board with lead pin imageConversion adapter
    Printed wiring board with lead pin
  • equal
  • Conversion image

Dealing with discontinued parts and components

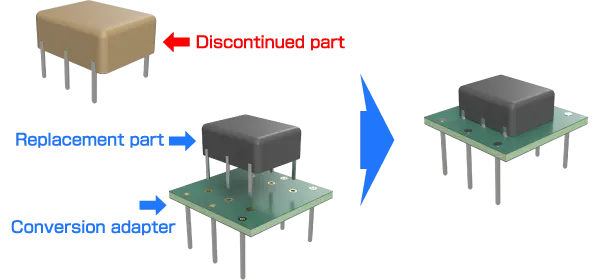

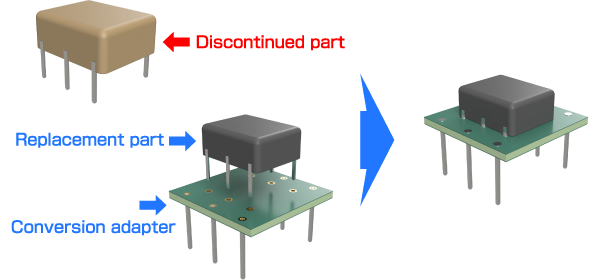

Discontinued parts and replacement parts are lead pin type, but the pitch is different.

  • Discontinued parts imageDiscontinued parts
  • Arrow
  • Replacement parts imageReplacement parts
  • plus
  • Conversion adapter imageConversion adapter
  • equal
  • Conversion

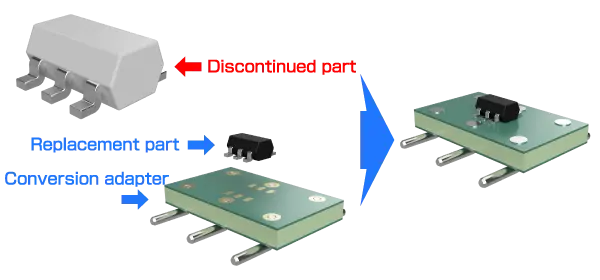

Discontinued parts and replacement parts are SMT type, but the pitch is different.

  • Discontinued parts imageDiscontinued parts
  • Arrow
  • Replacement parts imageReplacement parts
  • plus
  • Conversion adapter imageConversion adapter
  • equal
  • Conversion

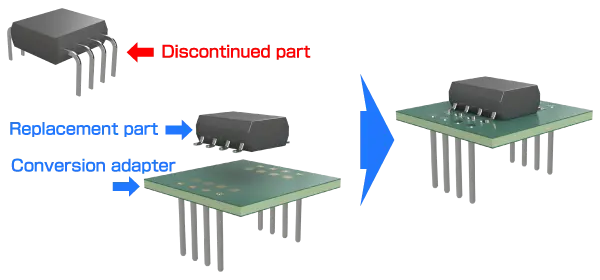

Converting from lead type parts to SMT type replacement parts

  • Discontinued parts imageDiscontinued parts
  • Arrow
  • Replacement parts imageReplacement parts
  • plus
  • Conversion adapter imageConversion adapter
  • equal
  • Conversion

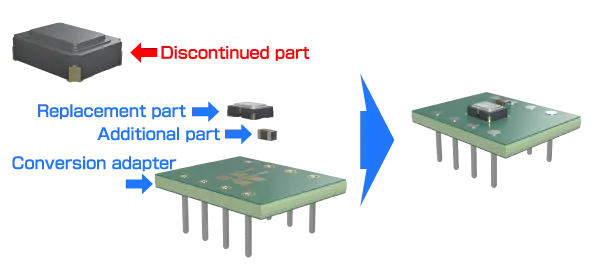

Additional parts are required after using replacement parts

  • Discontinued parts imageDiscontinued parts
  • Arrow
  • Replacement parts and additional parts imageReplacement parts and additional parts
  • plus
  • Conversion adapter imageConversion adapter
  • equal
  • Conversion
