About Ribbon terminals
This is an introduction to the ribbon terminals used in the ICREX crimping system.
About Ribbon terminals

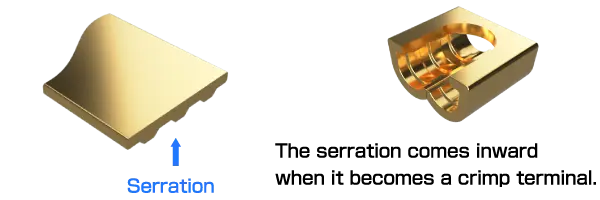

The ribbon terminal is a strip-shaped terminal wound around a reel that attaches to the crimper ribbon crimper. Wave-shaped serrations are applied to increase the area of contact with the workpiece to be crimped. This serration improves electrical properties such as contact resistance and mechanical properties such as tensile strength.
Types of ribbon terminal
| Size | Thickness | |||
|---|---|---|---|---|
| 0.2mm | 0.3mm | 0.4mm | ||
| Width | 2mm (Part No.) |
△ (220) |
○ (230) |
○ (240) |
| 3mm (Part No.) |
△ (340) |
|||
| 4mm (Part No.) |
○ (430) |
△ (440) |
||
Width,
Thickness
| Part No. | Material |
|---|---|
| B | Brass C2700W-1/4H |
材質| Part No. | Surface treatment |
|---|---|
| S | Sn |
Surface treatment
