Substrate Horizontal Connection Pin Headers

Pin headers for horizontal board to board connection

Substrate Horizontal Connection Pin Headers description

These headers can be used for horizontal connection between printed circuit boards.

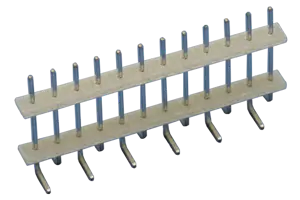

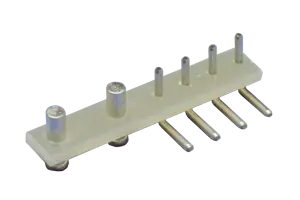

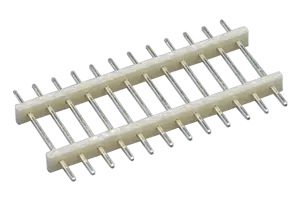

Substrate Horizontal Connection Pin Headers photo

Substrate Horizontal Connection Pin Headers special features

  • Pin headers for horizontal connection between boards.
  • Low volume custom production orders accepted.
  • Three different types to choose from.
Substrate Horizontal Connection Pin Headers image

Substrate Horizontal Connection Pin Headers product examples and applications

Wave terminal type

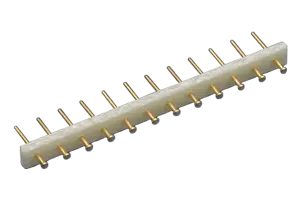

Wave terminal type photo Wave terminal type image
Wave terminal type drawing
  • Pitch P : 1.27㎜, 2.54㎜
  • No. of pins : 2, 3, 4
Please feel free to inquire about specifications other than those given here.
Material Base CEM-3 etc
terminals Brass (C2700W)
Surface treatments Tin plating

Snap-off terminal Type A

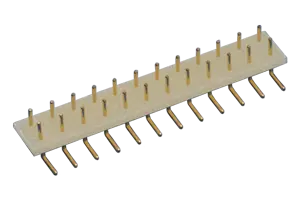

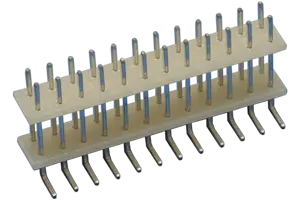

Snap-off terminal Type A photo Snap-off terminal Type A image
Snap-off terminal Type A drawing
  • Pitch P : 1.27㎜, 2.54㎜
  • No. of pins : 2, 3, 4
Please feel free to inquire about specifications other than those given here.
Material Base CEM-3 etc
terminals Brass (C2700W)
Surface treatments Tin plating

Snap-off terminal Type B

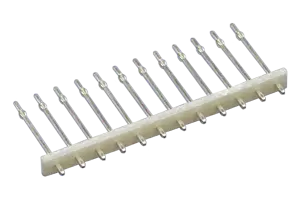

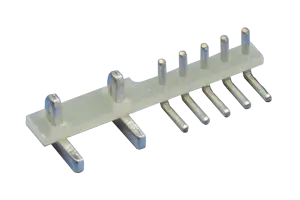

Snap-off terminal Type B photo Snap-off terminal Type B image
Snap-off terminal Type B drawing
  • Pitch P : 1.27㎜, 2.54㎜
  • No. of pins : 2, 3, 4
Please feel free to inquire about specifications other than those given here.
Material Base CEM-3 etc
terminals Brass (C2700W)
Surface treatments Tin plating
