Terminal hold contact pin headers

This is an introduction to the pin header that allows the boards to be connected horizontally and vertically.

About Terminal hold contact pin headers

Terminal hold contact pin headers overview and features

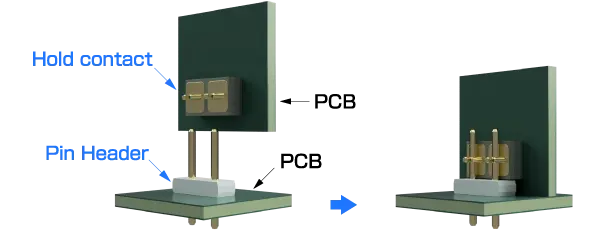

This is a hold-type pin header that enables horizontal and vertical connections between printed circuit boards.
You can simply connect boards together by combining the male pin header with the female hold contact.

Terminal hold contact pin headers image

Terminal hold contact pin headers Product examples

For through-hole boards

Single contact

For through-hole boards Single contact photo

Specification example

For through-hole boards Single contact image

Double contact

For through-hole boards Double contact photo

Specification example

For through-hole boards Double contact image

For SMT boards

Single contact

For SMT boards Single contact photo

Specification example

For SMT boards Single contact image

Double contact

For SMT boards Double contact photo

Specification example

For SMT boards Double contact image
Connector side specification
Material Pin terminals Phosphor bronze
Base CEM-3 etc
Pin terminal surface treatment Au

Pin header side specification
Material Pin terminals Phosphor bronze
Base CEM-3 etc
Pin terminal surface treatment Au

Minimum pitch 2.54mm
Performance with land
Single contact Double contact
Contact resistance 20mΩ or less 10mΩ or less
Permissible current 3A 3A
Insert 3N or less 5N or less
Withdraw 0.5N or more 0.7N or more
Repeated mating/ un-mating MAX. 50 MAX. 50

Performance no land
Single contact Double contact
Contact resistance 30mΩ or less 15mΩ or less
Permissible current 3A 3A
Insert 3N or less 5N or less
Withdraw 0.5N or more 0.7N or more
Repeated mating/ un-mating MAX. 50 MAX. 50

Repeated mating/ un-mating assumes no twisting or similar force.
Please enquire for details of other specifications.
