Free standing

Pin headers for SMT PCB that can stand on their own even in a single row

About Free standing Pin Headers

Overview and features

Pin headers that can stand free-standing even on a single row by snapping a clip into the base section.

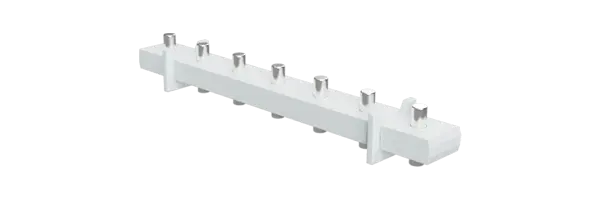

Free standing Pin Headers photo

Applications and specification examples

Applications

Connection between SMT bords

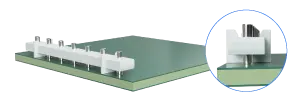

Image of Free standing Pin Headers application
Image of Free-standing clip

Specification examples

Image of Specification examples

Material

① Pin terminal ② Base ③ Free-standing clip
Brass, etc Substrate materials etc. Substrate materials etc.

Please inquire for details of how pitch, numbers of pins and dimensions, etc., can be customised.
