Preform Chain Terminal Insert Systems description
The pre-form chain terminal insert system is a system realized by integrating the chain terminal with the chain terminal insertion machine at a high level. It consists of a pre-form chain pin terminal insert system and a pre-form chain tab terminal insert system.
Both are systems that insert terminals directly into molded products such as printed circuit boards and bobbins.
As a mechanical component for electrical connection between printed circuit boards, it has been adopted by many customers as a terminal for wire winding bobbins, and has been highly evaluated.
Preform Chain Terminal Insert Systems applications

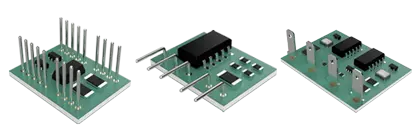

As an electrical mechanical component for external connection of the board module

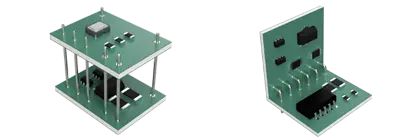

As a mechanical component for electrical connection to connect substrates horizontally and vertically

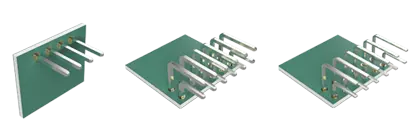

As a connector connection terminal

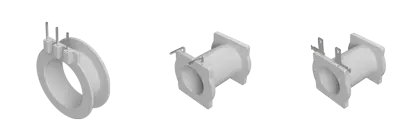

As a terminal for wire winding bobbins

Preform Chain Terminal Insert Systems features
NC control for positioning and high speed insertion
No need to swap insert tools for new insert patterns.
Insert programmes can be changed using NC channel control.
Highly reliable preform chain terminal insertion
In comparison with the single terminal insert system used by parts feeders, which are prone to faults during terminal alignment and escape, our system delivers superior insertion probability by removing and inserting terminals one by one from the preform chain terminals.
Unit system that allows easy insertion and removal of insertion tools
Different shapes of terminals can be accommodated rapidly.

Preform Chain Terminal Insert Systems index
- Preform Chain Pin Terminal Insert System
Introduction of Preform Chain Pin Terminal Insert System
- About Preform Chain Pin Terminal
Introduction of Preform Chain Pin Terminal
- Preform Chain Tab Terminal Insert System
Introduction of Preform Chain Tab Terminal Insert System
- Cost reduction proposal
Introduction of cost reduction examples
- Various terminal insertion examples
Introduction of examples of inserting preform chain terminals
- Chain Terminal Inserter
Introduction of the preform chain terminal insertion machine
- Chain Terminal Inserter : PIA Series
Stationary type preform chain pin terminal insertion machine
- Chain Terminal Inserter : PIS Series
Tabletop type preform chain pin terminal insertion machine
- Chain Terminal Inserter with workpiece auto-supply device
Design and manufacture of insertion machine with automatic workpiece auto-supply device
- Press fit Chain Terminal
(Reference) Introduction of press-fit chain pin terminal of needle eye type
