Introduction of various other Full Custom Pin Headers 1

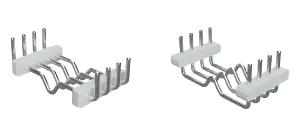

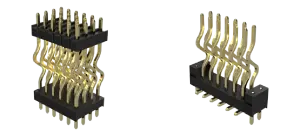

Wave pin terminal multi-row type

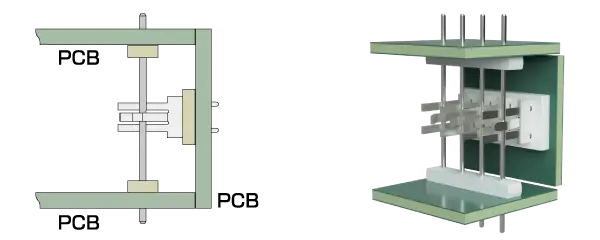

Wave pin terminal multi-row type pin headers are pin header that absorbs the stress on the solder joints caused by thermal stress and temperature changes when connecting boards to each other by using the buffering effect in the XYZ directions of the wave-shaped pin terminals.

Wave pin terminal type for PCB horizontal connection

Horizontal connection type Wave Pin Header that absorbs and relieves stress on solder joints caused by thermal stress and temperature changes.

Combine type

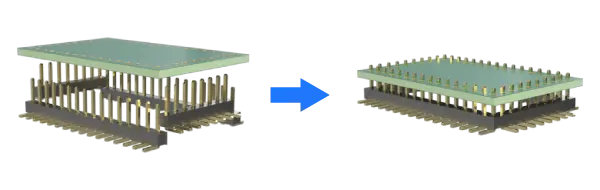

Integrated pin header reduces the hassle of installing multiple pin headers and maintains stable flatness.

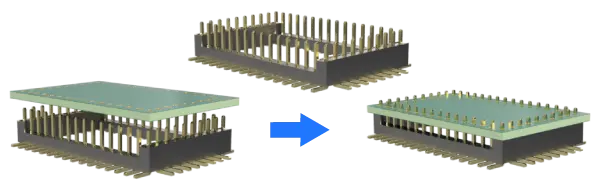

Installing multiple pin headers is time-consuming and the flatness is unstable.

Problem solving with combine type pin header

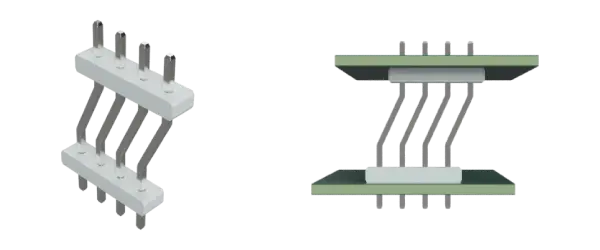

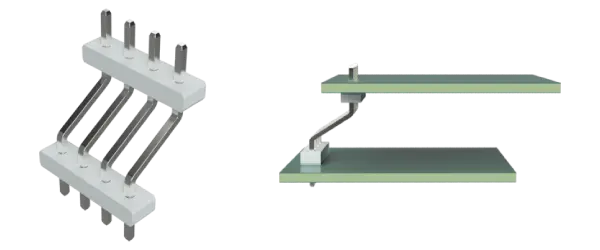

Shift type

Pin headers that can be installed in a shifted position on the board

Shift in X direction

Shift in Y direction

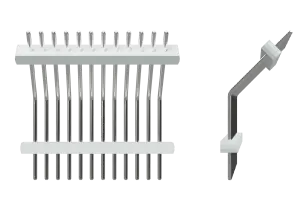

Shift type (low height)

Pin headers that shifts and stacks the boards at a minimum height

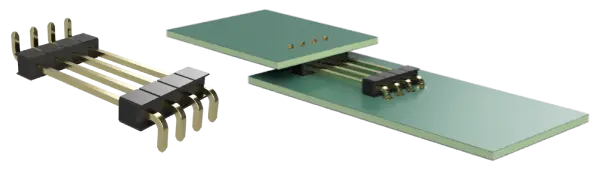

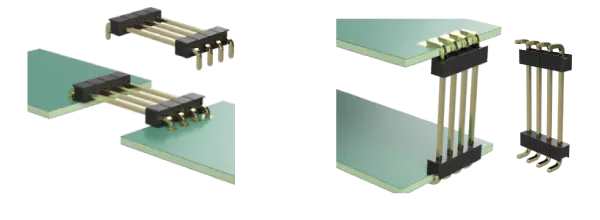

Both ends bent type

Pin headers that can be used for horizontal and parallel connection of boards

Right-angle type of Through hole contact pin header

Right-angle type of Through hole contact pin header that can be connected to board plated through holes without soldering.

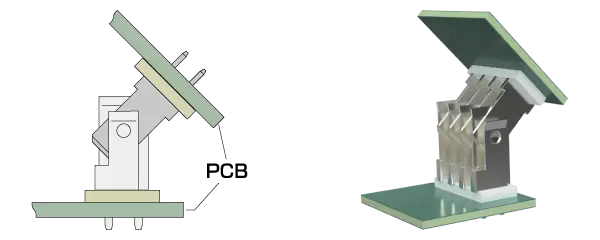

Angle-free

Pin header with adjustable angle after connection.

Side connection

Horizontal connection is possible.

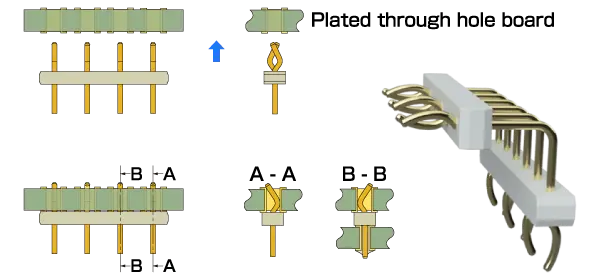

Press fit with auxiliary base

Press-fit pin header that adds an auxiliary base to reduce the stress that occurs in the through-hole of the mating board during installation.
